This horse initially presented with a chronic foot abscess and evidence of septic pedal osteitis on radiographic examination.

Clinical Examination

After initial attempts at medical management, the horse underwent CT-guided debridement of the infected distal phalanx via the sole and a dorsal hoof wall resection. The horse continued to show marked lameness and it was decided that further information was needed to make a plan going forward.

MRI Findings

Standing Equine MRI was then performed which allowed identification of a previously unseen bone fragment likely indicating a sequestrum (See Figure 1) or necrotic piece of bone. This was confirmed at repeat surgery and removed. The horse remained in the hospital for another week for medical management but was discharged soon after.

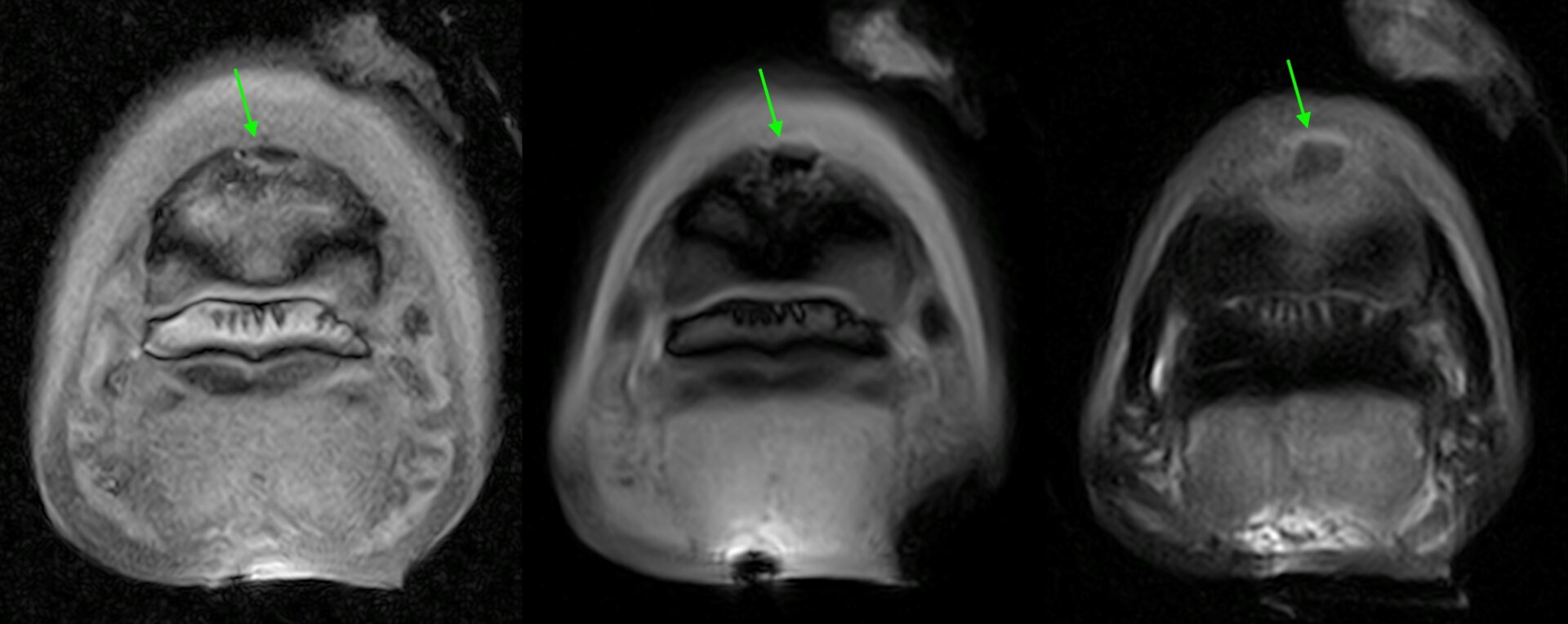

Figure 1 – green arrows indicating a sequestrum and identified with MRI
Figure 2 – FRONTAL images. Far-right shows a STIR with the extent of infection/oedema illustrated by the hyperintensity in P3


MRI in this instance was vital for the management of the case. Interestingly the sequestrum was very conspicuous on the MRI, but four days prior it was not visible on the CT (even looking retrospectively). This may have been due to the rapid development of this lesion or the higher contrast resolution of MRI and the fact the fragment is highlighted by a rim of fluid signal on MRI.

Many thanks to the RVC Equine Team for sharing this case study.
